350 - 430MHz 3 Way RF Antenna Combiner 50 Ohm VSWR ≤1.25, IP65 Indoor Outdoor

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 350 430MHz 3 Way RF Antenna Combiner 50 Ohm VSWR 125 IP65 Indoor Outdoor
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-PS-035043-ON2-R

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Contact Now

350-430MHz 3 Way Power Splitter

Part Number	VN-PS-035043-ON3-R
Operating Frequency ( MHz )	350-430
Impedance ( Ohm )	50
VSWR	≤1.25
Split Loss (dB)	≤5.1
IM3 (dBc @ 2×43dBm)	-150
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	300
Peak Power (Watt, max)	1200

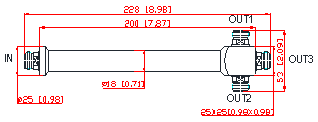

Dimension (mm)(L×W×H, excl connector)	200 × 25 × 25
Net Weight (g)	170± 20
Packing Dimensions (mm,L×W×H)	240 × 80 × 35
Packing Carton Size (mm,L×W×H)	500 × 420 × 160
ROHS Compliance	Yes

350 - 430MHz 3 Way RF Antenna Combiner 50 Ohm VSWR ≤1.25, IP65 Indoor Outdoor
